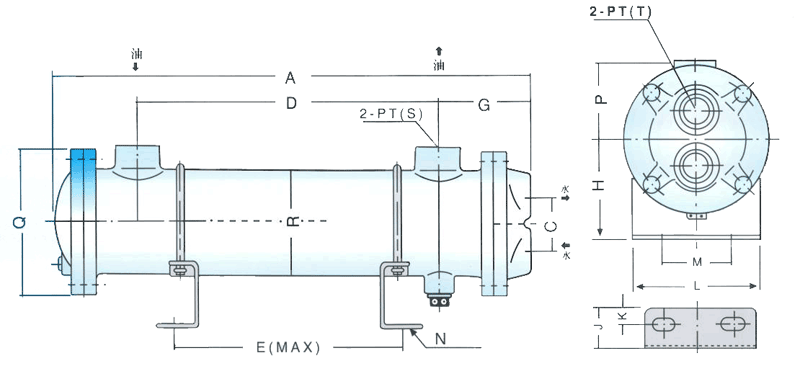

DT系列示意圖


A
C
D
E
G
H
J
K
L
M
N
P
Q
R
S
T

形式編號 A C D E G H J K L M N P Q R S T 最大流量L/min 散熱面積m2
DT-303 299 48 147 117 95 79 35 15 128 75 11×20 75 120 89 1 ¾ 100 0.3
DT-304 370 48 219 189 95 79 35 15 128 75 11×20 75 120 89 1 ¾ 100 0.4
DT-305 468 48 291 261 95 79 35 15 128 75 11×20 75 120 89 1 ¾ 100 0.5
DT-307 608 48 435 465 95 79 35 15 128 75 11×20 75 120 89 1 ¾ 100 0.7
DT-309 758 48 578 548 95 79 35 15 128 75 11×20 75 120 89 1 ¾ 100 0.9
DT-311 898 48 722 692 95 79 35 15 128 75 11×20 75 120 89 1 ¾ 100 1.1
DT-411 620 70 425 384 100 88 35 15 150 105 11×20 93 140 114 ¾ 200 1.1
DT-415 770 70 568 528 100 88 35 15 150 105 11×20 93 140 114 ¾ 200 1.5
DT-418 910 70 712 672 100 88 35 15 150 105 11×20 93 140 114 ¾ 200 1.8
DT-421 1055 70 856 816 100 88 35 15 150 105 11×20 93 140 114 ¾ 200 2.1
DT-424 1220 70 1020 980 100 88 35 15 150 105 11×20 93 140 114 ¾ 200 2.4
DT-522 785 85 558 528 115 95 45 20 175 122 14×22 108 170 139 ¾ 300 2.2
DT-527 925 85 702 672 115 95 45 20 175 122 14×22 108 170 139 ¾ 300 2.7
DT-531 1070 85 846 816 115 95 45 20 175 122 14×22 108 170 139 ¾ 300 3.1
DT-535 1235 85 1010 980 115 95 45 20 175 122 14×22 108 170 139 ¾ 300 3.5
DT-544 1455 85 1228 1196 115 95 45 20 175 122 14×22 108 170 139 ¾ 300 4.4
DT-649 1078 85 836 756 125 105 45 20 204 149 14×22 121 196 165 2 1 400 4.9
DT-657 1242 85 1000 920 125 105 45 20 204 149 14×22 121 196 165 2 1 400 5.7
DT-668 1462 85 1218 1138 125 105 45 20 204 149 14×22 121 196 165 2 1 400 6.8
DT-682 1742 85 1500 1420 125 105 45 20 204 149 14×22 121 196 165 2 1 400 8.2
DT-8107 1140 110 825 760 130 183 50 25 338 233 14×20 145 270 216 2 600 10.7
DT-8125 1305 110 990 1025 130 183 50 25 338 233 14×20 145 270 216 2 600 12.5
DT-8149 1520 110 1210 1130 130 183 50 25 338 233 14×20 145 270 216 2 600 14.9
DT-8180 1805 110 1490 1420 130 183 50 25 338 233 14×20 145 270 216 2 600 18.0
DT-10169 1100 173 800 725 150 222 38 15 210 152 14 223 293 267 10KV 2½
法蘭
2 800 16.9
DT-10185 1210 173 910 835 150 222 38 15 210 152 14 223 293 267 10KV 2½
法蘭
2 800 18.5
DT-10197 1300 173 980 905 150 222 38 15 210 152 14 223 293 267 10KV 2½
法蘭
2 800 19.7
DT-10235 1500 173 1200 1125 150 222 38 15 210 152 14 223 293 267 10KV 2½
法蘭
2 800 23.5
DT-10285 1775 173 1500 1425 150 222 38 15 210 152 14 223 293 267 10KV 2½
法蘭
2 800 28.5

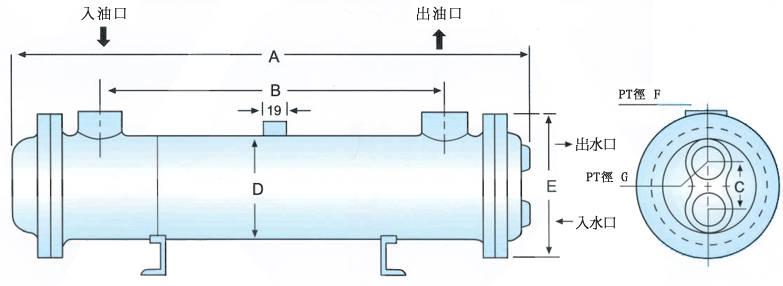

OR系列示意圖


A
B
C
D
E
F
G

形式編號 A B C D E F G 散熱管 散熱面積 油箱容量 重量 泵浦流量 水流量
OR-60 465 295 40 89.1 120 ¾ ¾ 22 0.24 60 8 100 50
OR-100 540 370 55 114.3 140 ¾ ¾ 26 0.35 100 12 200 100
OR-150 580 375 65 139.8 170 ¾ 42 0.6 150 15 300 150
OR-250 800 600 65 139.8 170 ¾ 58 1.2 250 22 300 150
OR-350 1205 1000 65 139.8 170 ¾ 58 1.9 350 30 300 150
OR-600 1225 970 85 165.2 196 2 58 1.9 600 40 400 200
OR-800 1725 1470 85 165.2 196 2 58 2.8 800 50 400 200
OR-1000 2140 1890 85 165.2 196 2 58 3.5 1000 60 400 200
OR-1200 2520 2270 85 165.2 196 2 58 4.2 1200 70 400 200
